Feed Mixers | Feed Conveyors | Weigh Scales | Feed Carts | Bale Unrollers
Feed Mixers

4200

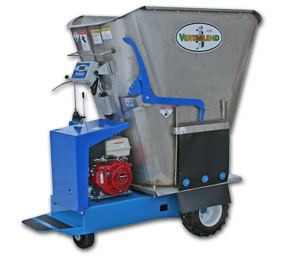

4200 Self Propelled Unit
available with unloading auger
42 cu. ft.
• Dimensions: 76” L x 36” W x 69” H
• Powered by 13 HP Honda
• Hydraulic Drive
• Excellent Maneuverability
• Electronic Scale
• Stainless Steel Bin
• Optional: Unloading Auger
for Feeding into Troughs
5500

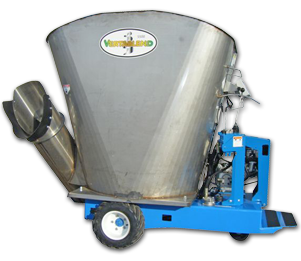

5500 Self Propelled Unit
available with unloading auger
55 cu. ft.
• Dimensions: 84” L x 43” W x 69” H
• Powered by 13 HP Honda
• Hydraulic Drive
• Excellent Maneuverability
• Electronic Scale
• Stainless Steel Bin
• Optional: Unloading Auger
for Feeding into Troughs


9500

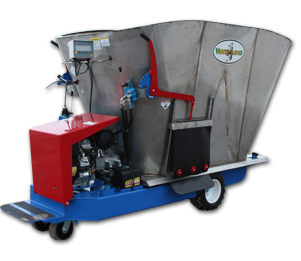

9500 Self Propelled Unit
available with unloading auger
• 95 cu.ft.capicity
• lenth 120” width 50” highth 69”
• Powered by 24 hp gass engine
• Excellent for loading with loader or skidsteer
• Stainless Steel Mixing tub
• Electronic scale
• Hydraulic drive & mixing

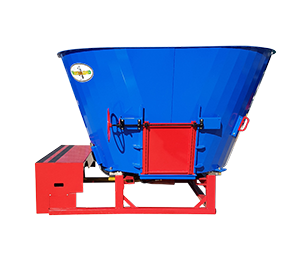

Single Screw Stationary Unit

Single Screw Stationary Unit
• 155, 250, and 350 cu. ft. available
• Powered by 2, 7½ HP or 2, 10 HP Electric Motors
• Excellent for Handling Hay and Baleage
• 10" Stainless Steel Liner for Longer Tub Life
• Efficient and Affordable
• Dimensions: 108” L x 86” W x 78” H
• 1 Screw
• Screw Flighting Thickness: ½"
• Floor Thickness: 3/8"
• Sidewall Thickness: 1/4"
• Door Width: 26"
• Door Height: 25"
• Door Location: RH, LH or Both
• Manual Door Control
• Scale System: Avery, Weigh-tronics
• Options: Magnet


9500

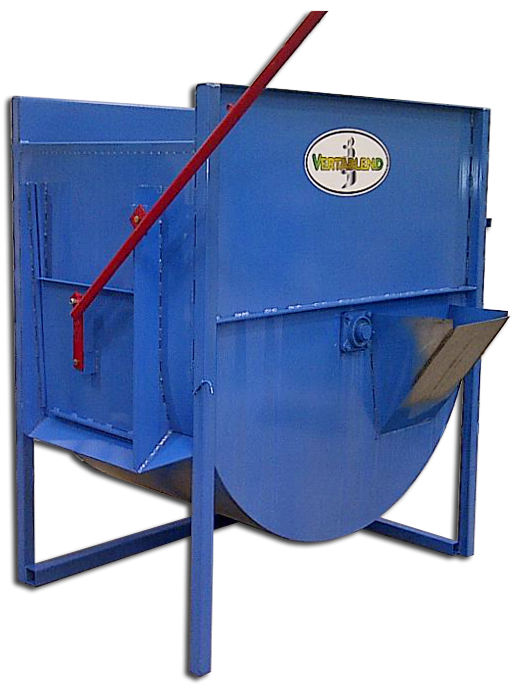

VB70TM Tumble MIxer
• 55, 65, 70 cu. ft.
• Dimensions: 60” L x 54” W x 72” H
• Sidewall Thickness: ¼"
• Floor Thickness: 12g Stainless Steel
• Runs on 3HP
• Manual Door Control
• Scale Option Available


9500

VB250T TMR Trailer MIxer
• 250 cu ft ,300 cu ft with rubber extention
• Horsepower requirements aprox.60 hp
• Screw flighting thickness: 1/2"
• Overall length: 165"
• Overall width: 105"
• Overall height: 94"
• Floor Thickness: 1/2"
• Sidewall Thickness: 1/4"
• Door width: 36"
• Door Height: 26"
• Door location: RH, LH or Both
• Number of knives: Up to 7 (4 recommended)
• Floor height: 35"
• Bottom of chute: 27"
• Door control: Hydraulic
• Scale System: Avery, Weigh-tronics
• Options: Magnet

9500

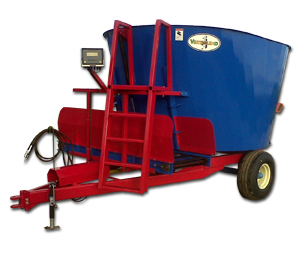

VB350TTMR Trailer MIxer
• Capicity - 350 cu ft & 400 with rubber extension
• Approx HP - 80 HP
• Flighting Thickness - 1/2"
• # of Knives on Auger - 4
• Floor Thickness - 1/2"
• Sidewall Thickness: 1/4"
• Overall Length - 196"
• Overall Width - 101"
• Overall Height - 100" (without extension)
• Door Width - 24"
• Door Height - 30"
• Conveyer Discharge - R or L hand
• Conveyer Width - 30"
• Conveyer Height without incline - 26"
• Door Control - hydraulic
• Scale System - weigh-tronics
